Beyond Domes: Mechanical, Reclaim, and Structural Expertise

Dome Technology specializes in custom structural-steel design, fabrication, and comprehensive installation services for structures, mechanical equipment, and reclaim systems. Our integrated team of engineers, steel detailers, fabricators, and installers provide a smoother process and superior results.

1

Design
2

Fabrication
3

Installation

Structural-Steel Processing

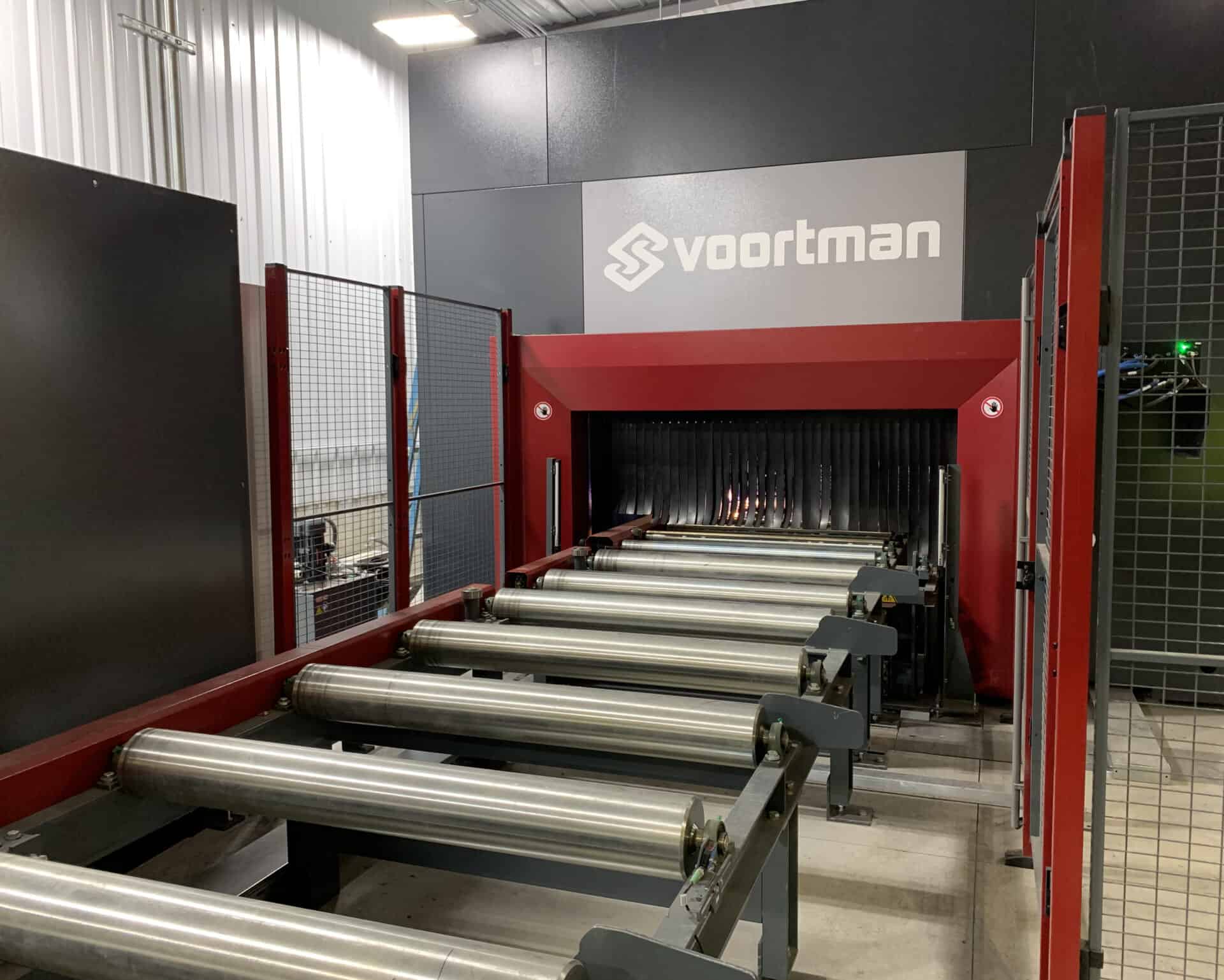

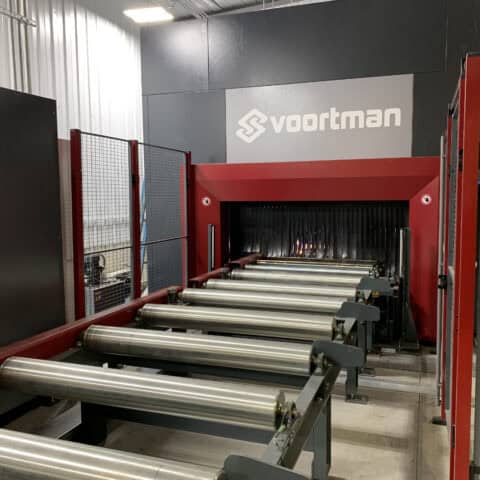

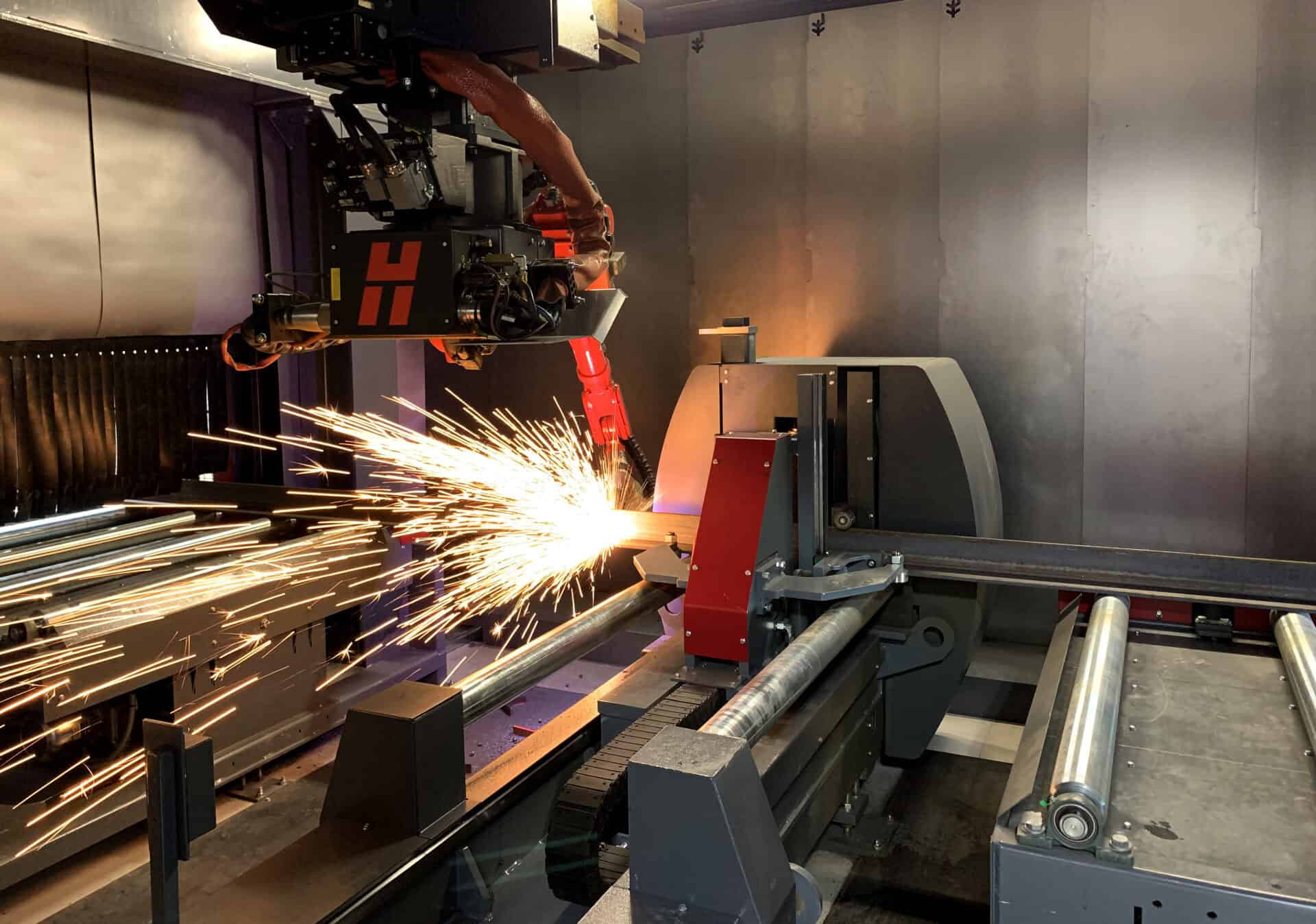

The Voortman V808 CNC plasma robotic beam line increases throughput, reduces human error, and keeps costs competitive. It processes wide profiles up to 50 inches (1,250 mm) wide, 65 feet (19,800 mm) long, and weighing up to 32,500 pounds (14,700 kg). This unit handles wide beams, channels, angles, and HHS square or rectangular sections. With it, we can process any structural shape, including wide flanges, channels, tube steel, and angles.

Plate Processing

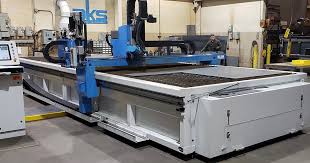

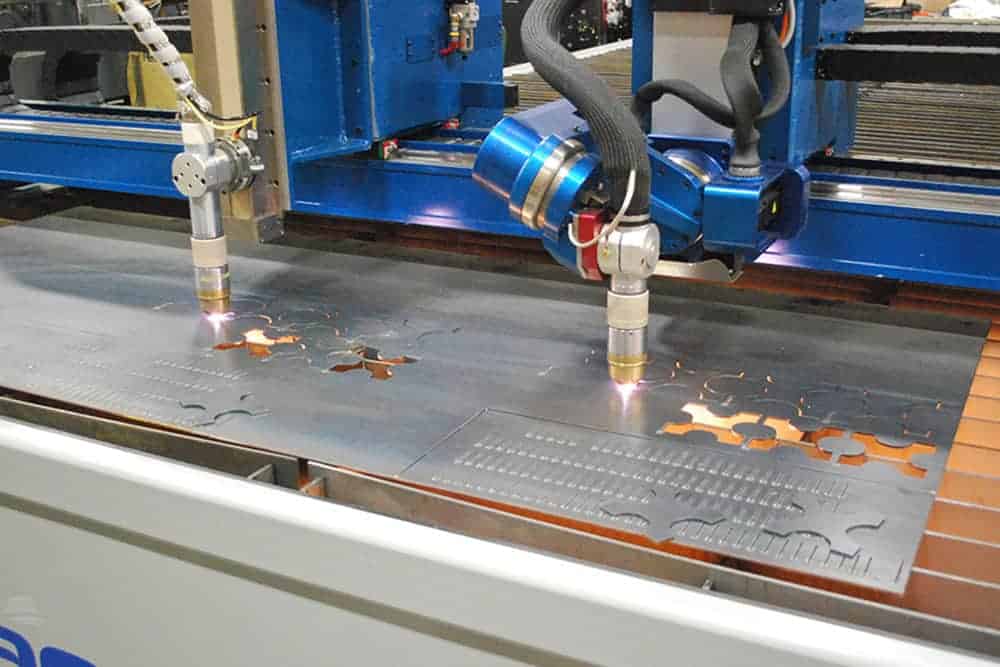

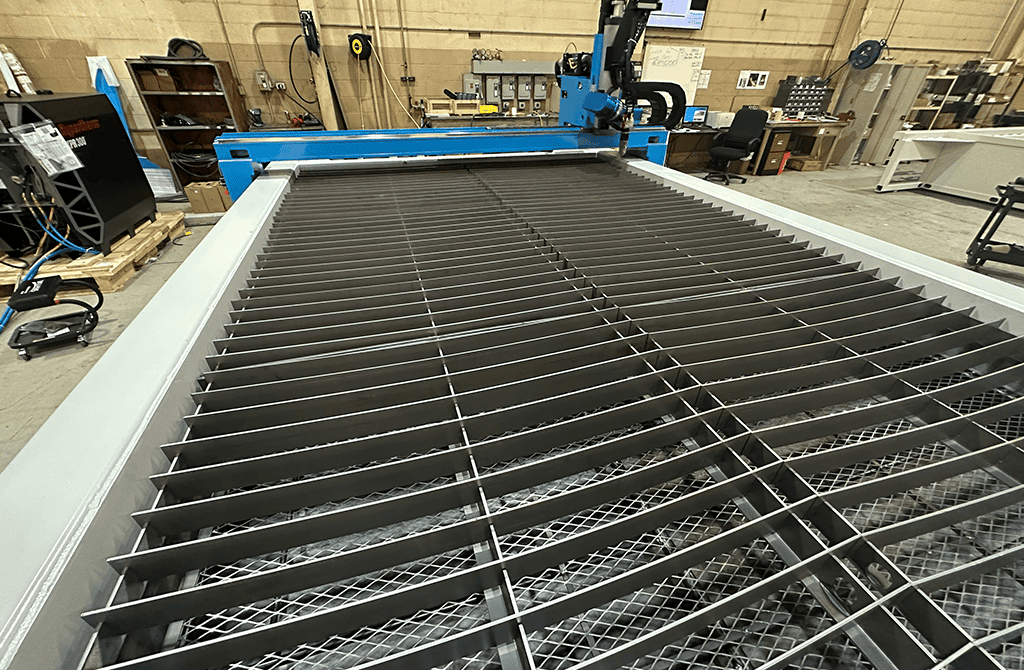

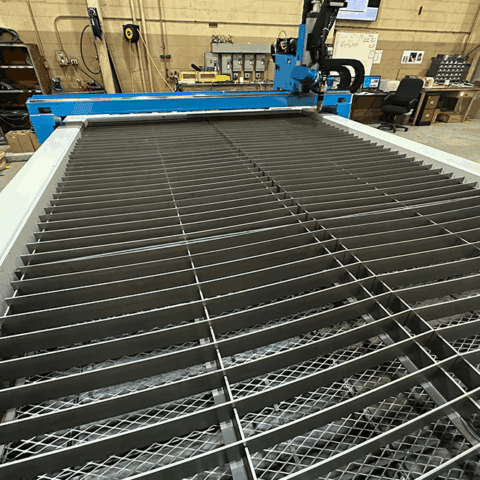

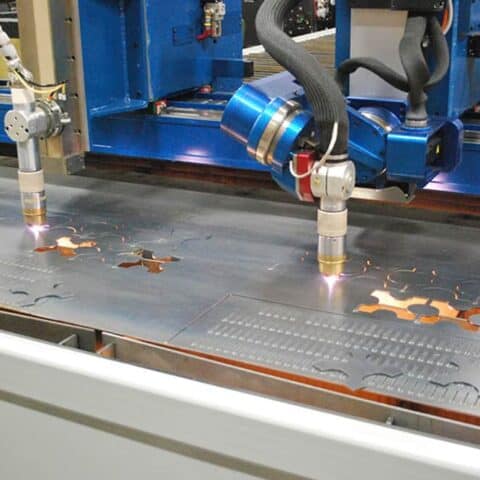

The AKS Plasma table with five-axis head can cut up to two-inch carbon-steel plate. The table also has an oxy-fuel torch head that can cut from 1/8” to 6 carbon-steel plate. This unit is equipped with a water vent-injection system, a patent-pending process featuring a vented N2 plasma gas and H2O shield gas for less angularity and squarer cut edges on stainless steel and aluminum.

Pipe Processing

The AKS plasma table also processes two-inch to 24-inch outside-diameter round pipe and up to 12-inch-by-12-inch standard rectangular or square tube up to 20 feet long with a maximum weight of 3,300 pounds (1,500 kg).

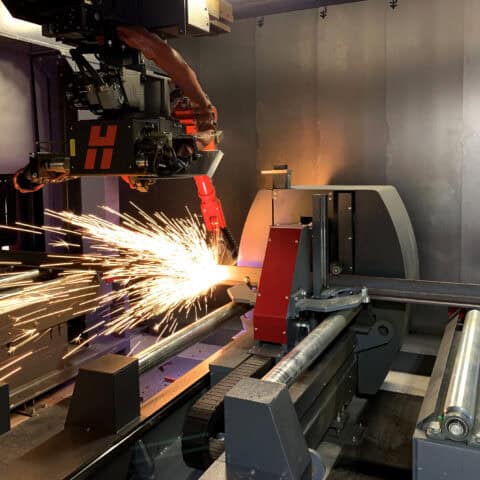

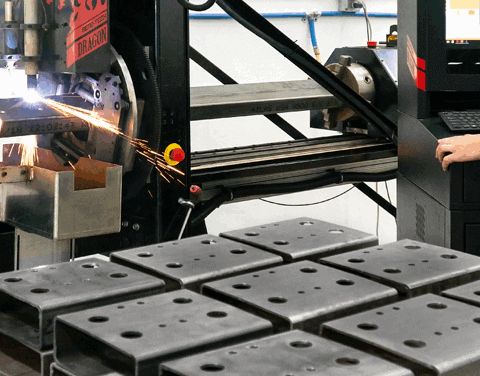

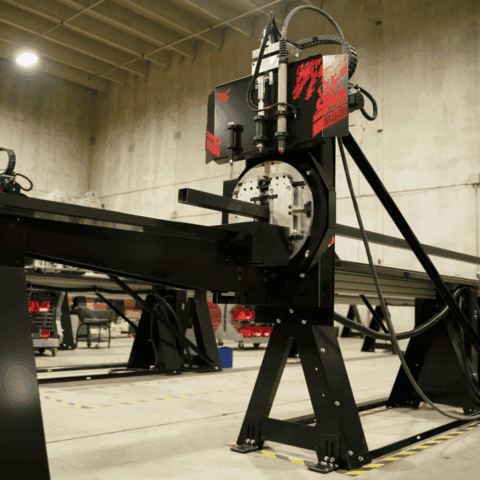

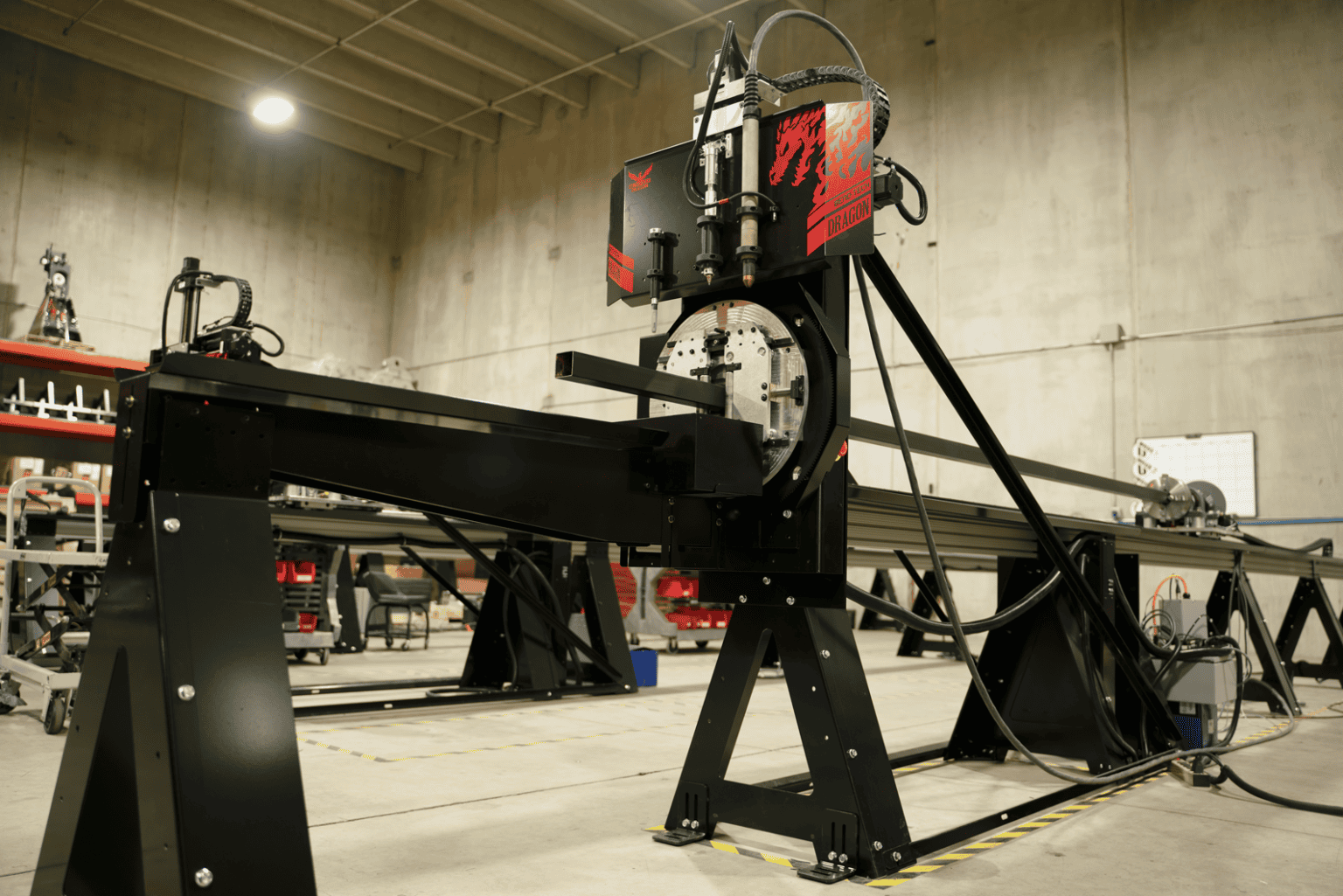

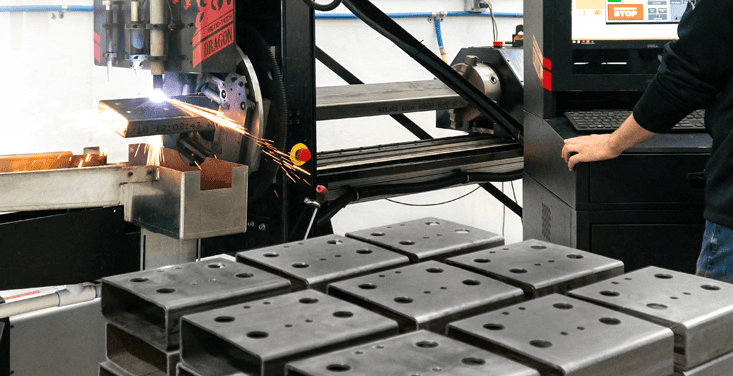

The BendTech Dragon A400 is a CNC tube and pipe plasma cutter designed to process materials up to 24 feet in length and with a maximum weight of 400 pounds. It can handle round tubing from 0.75 to six inches in diameter and square or rectangular tubing from one to four inches. The machine utilizes a five-axis system for precise control and automation.

Other Expertise

Carbon and stainless steel
Structural steel, plate, pipe
Design
Detailing
Fabrication

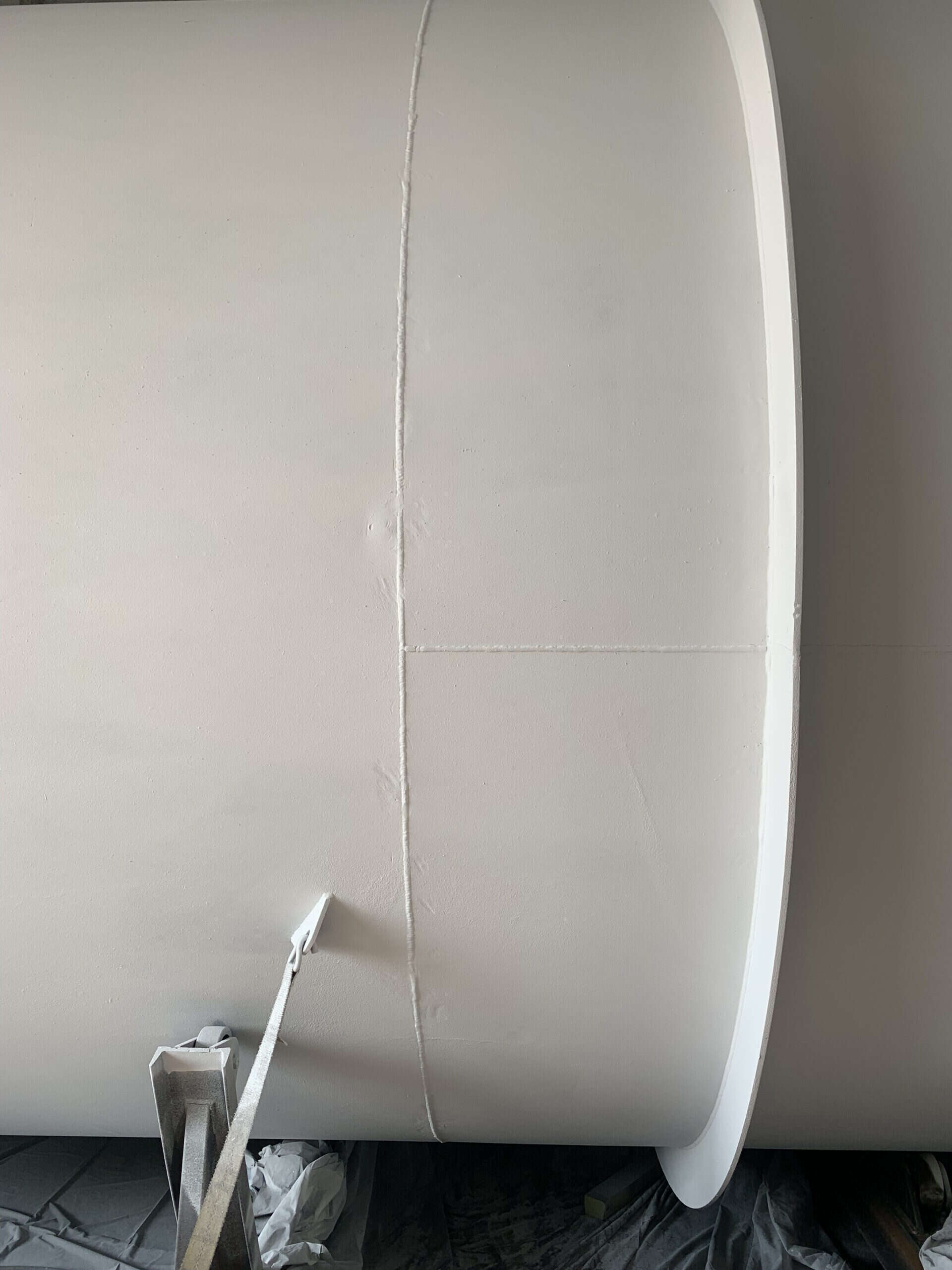

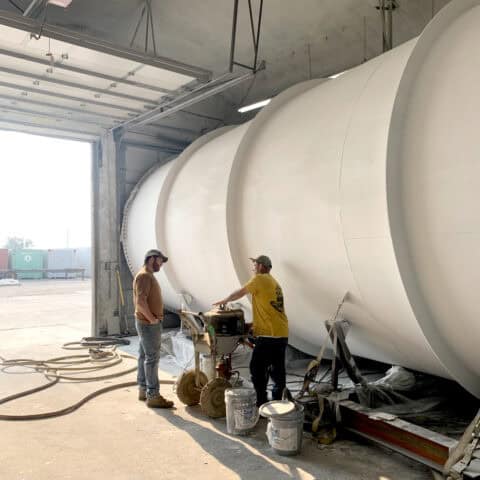

Finishing blasting, primer coats, and finish coats

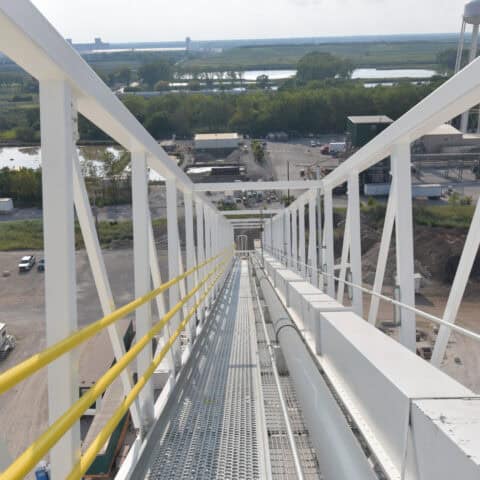

Structural-Steel Fabrication

Welding
Trusses
Towers
Bridges
Pipe galleries
Ladders

Industrial and Specialty Work

Pipe manifolds
Equipment manufacturing

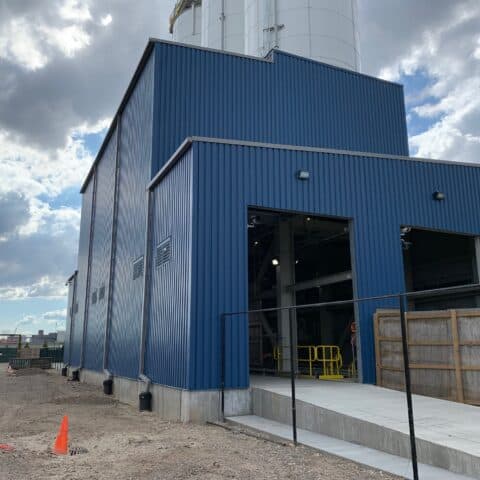

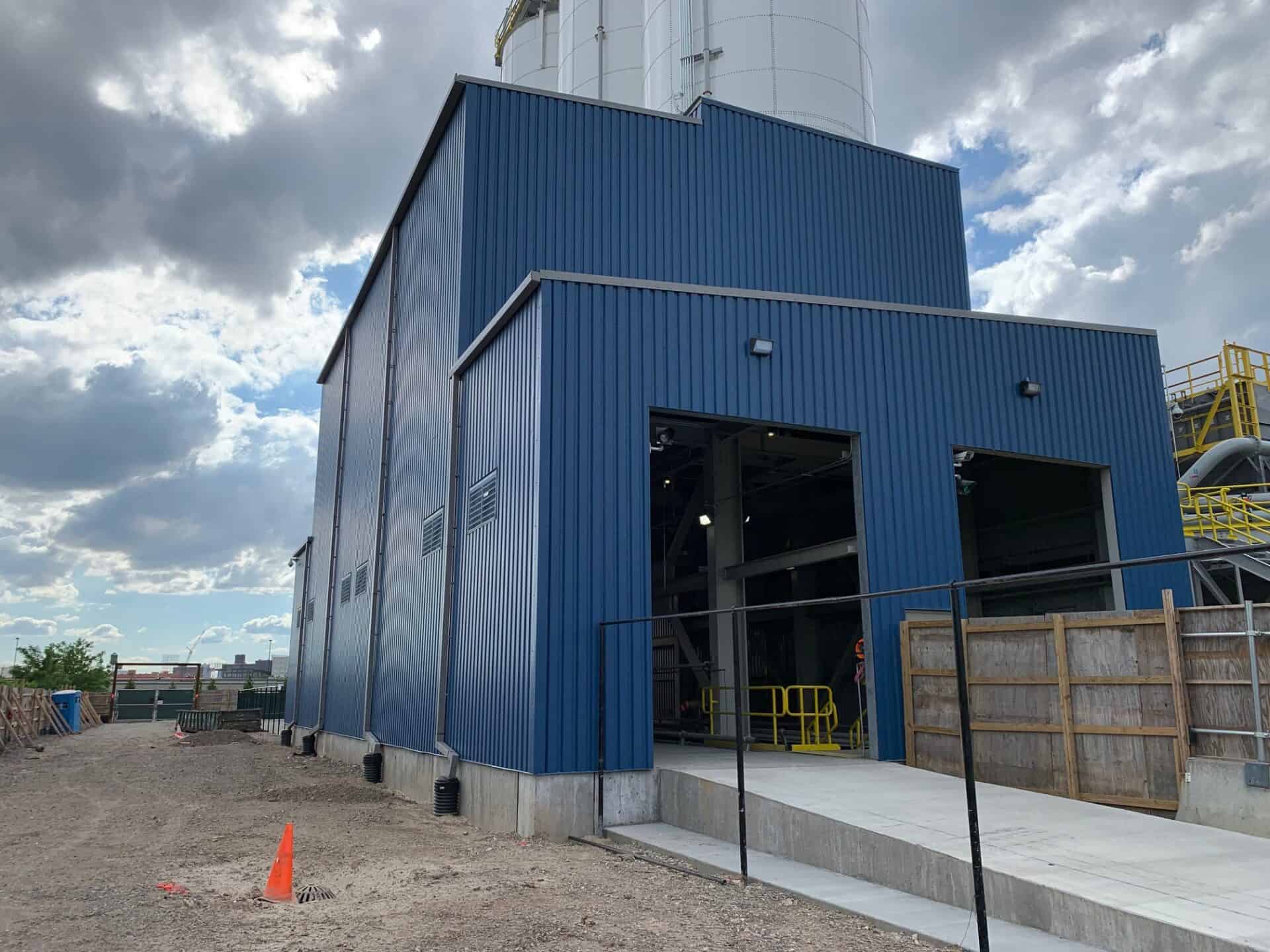

Post-and-beam buildings
Commercial construction

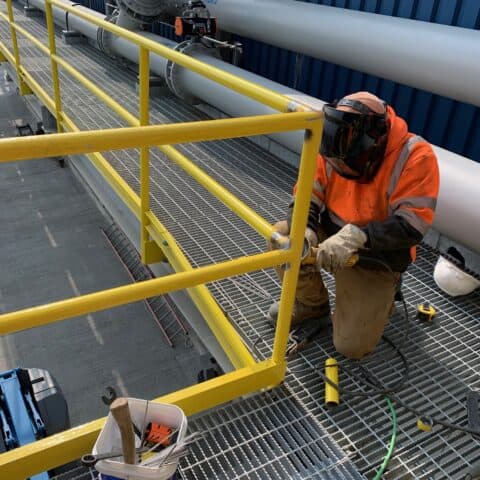

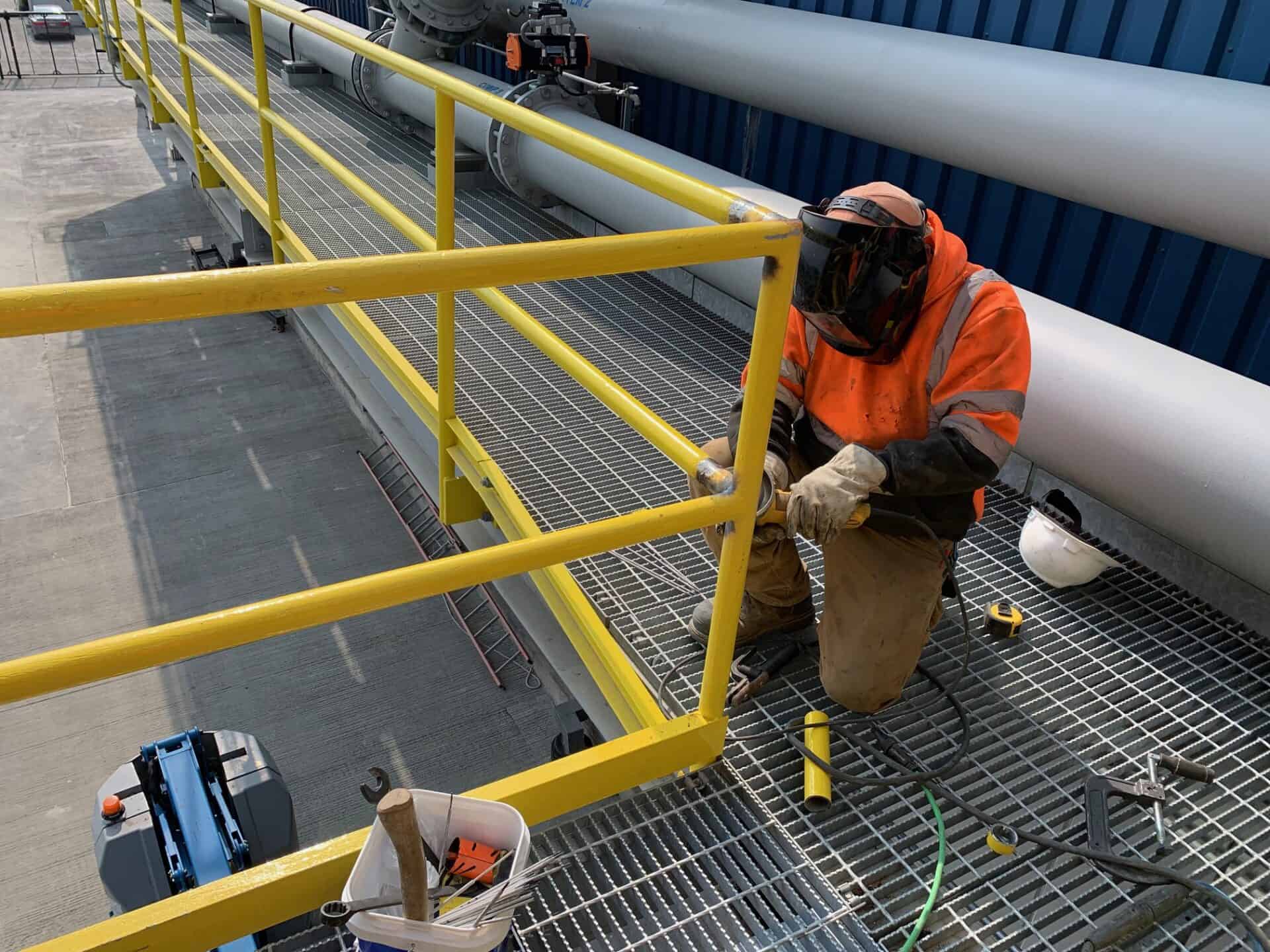

Handrail

Installation

Structural and Mechanical Installation

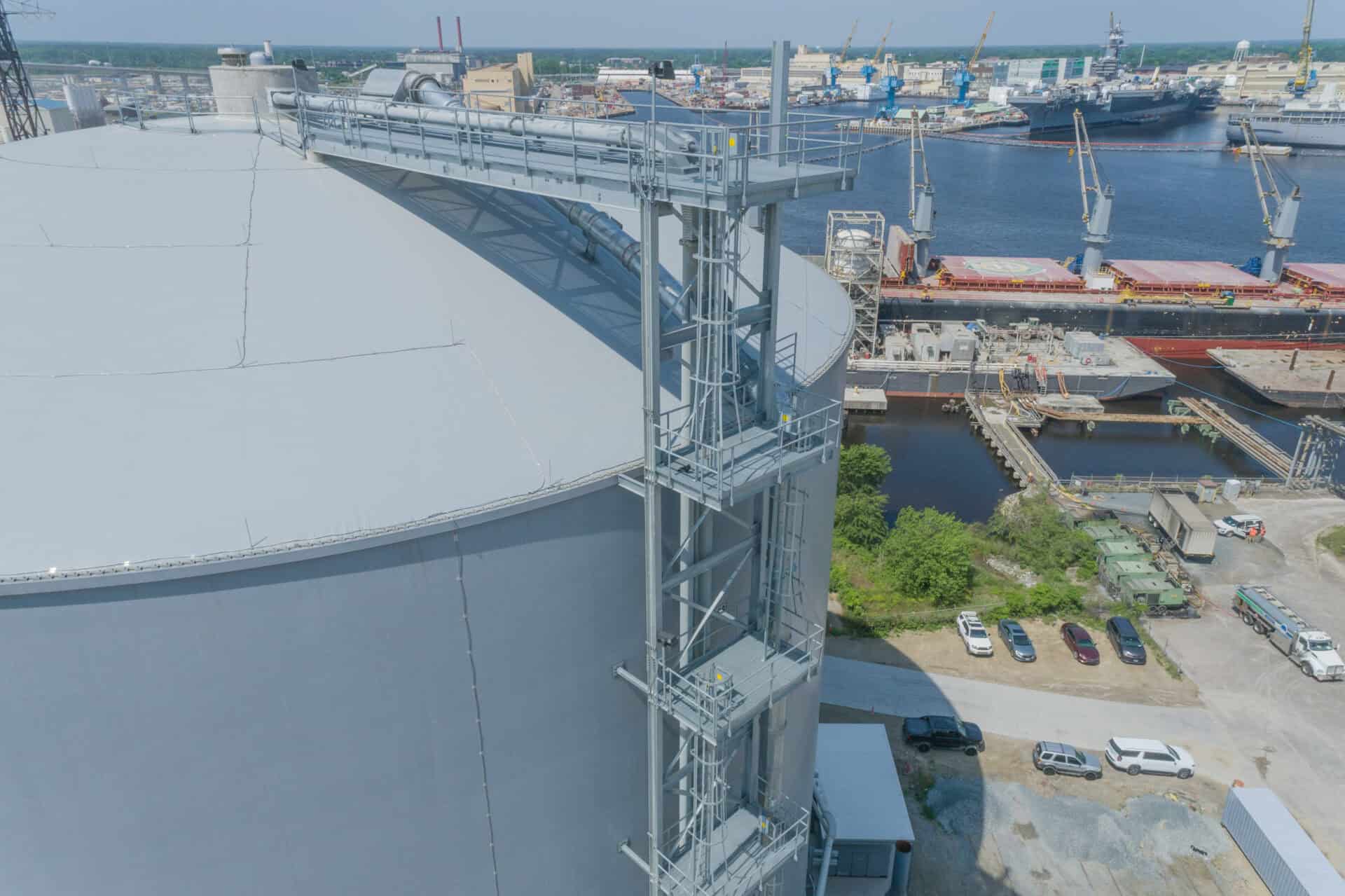

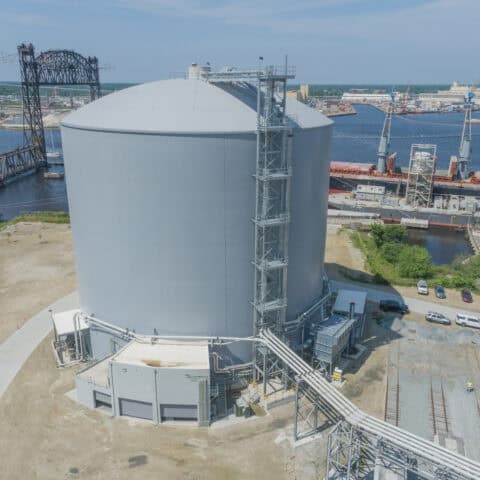

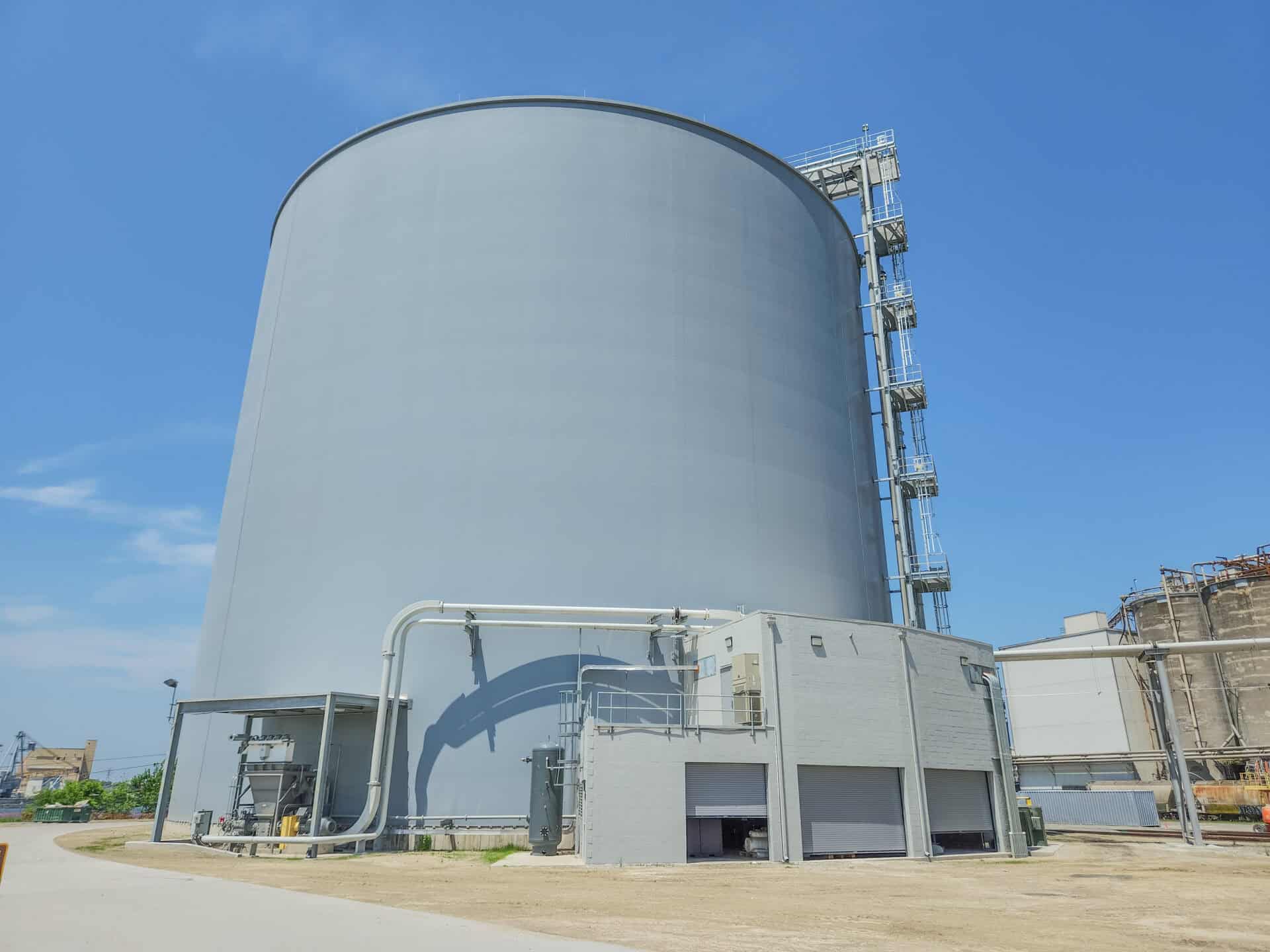

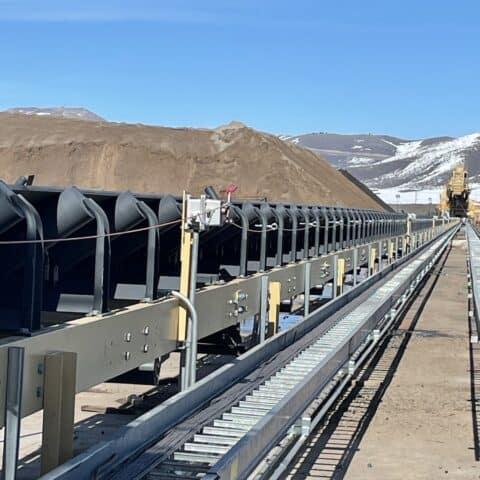

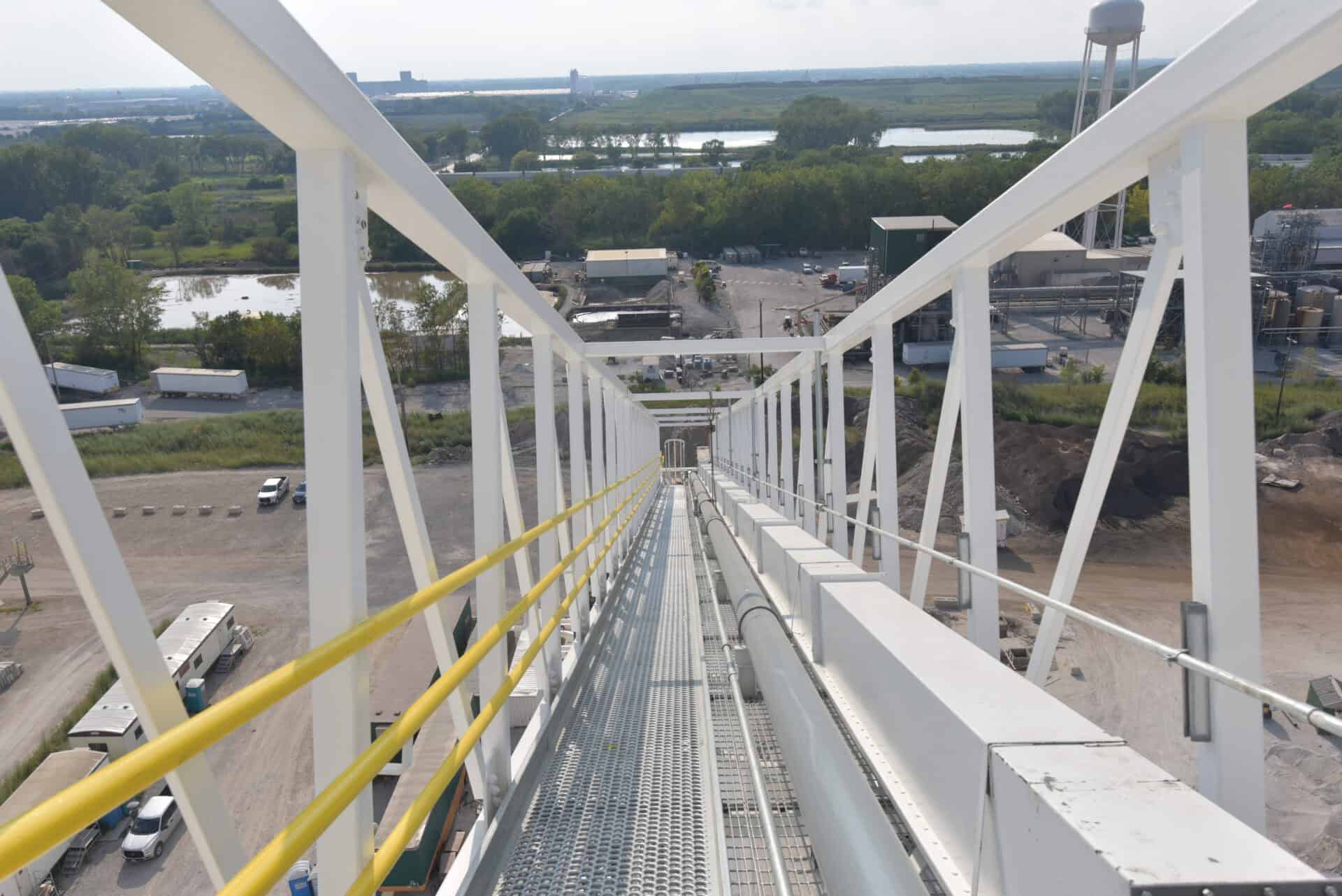

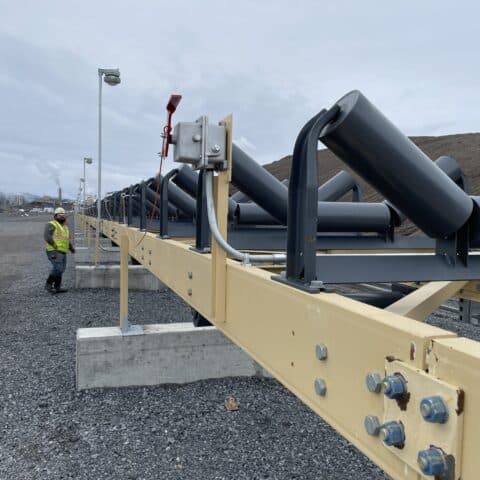

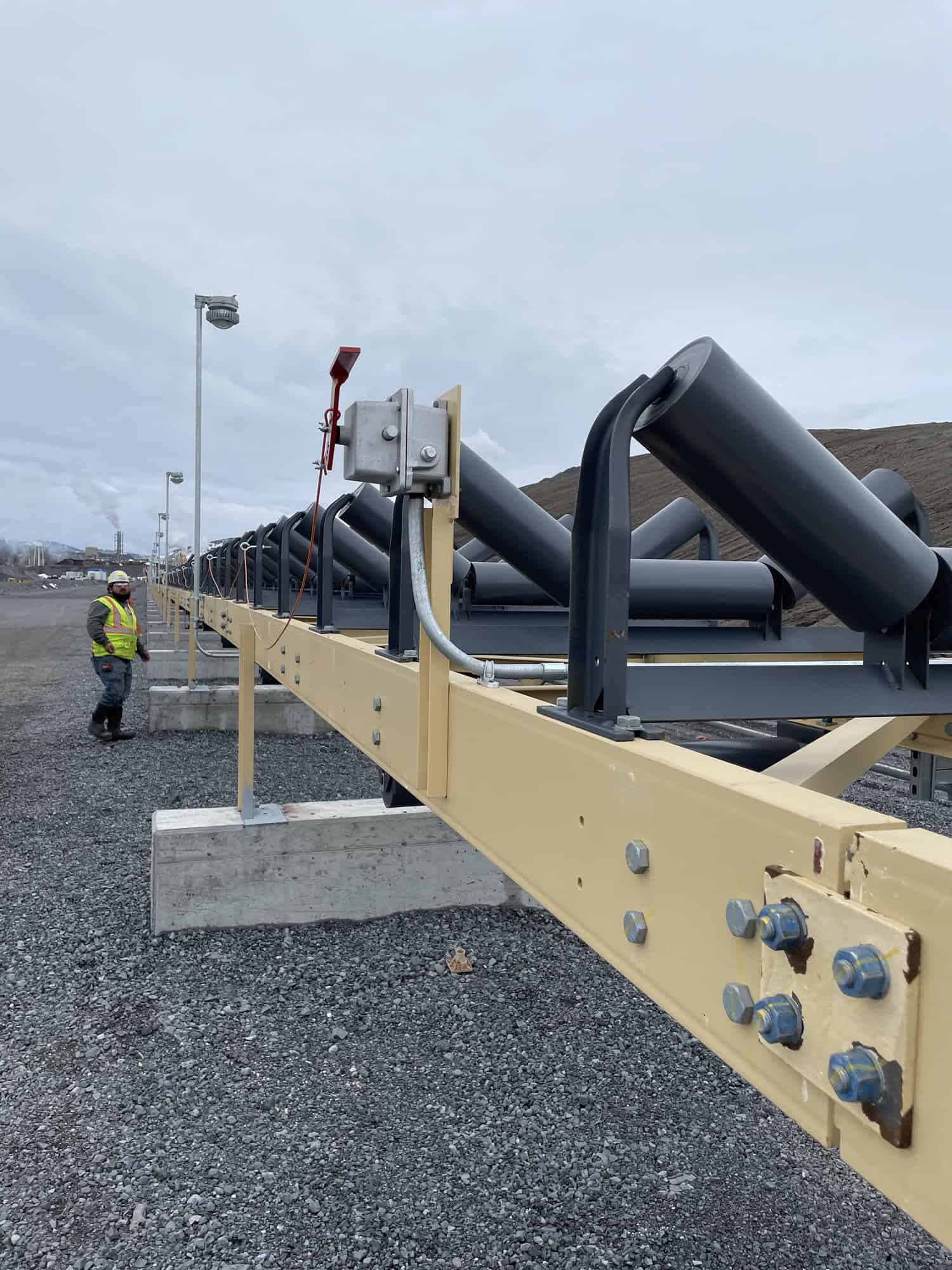

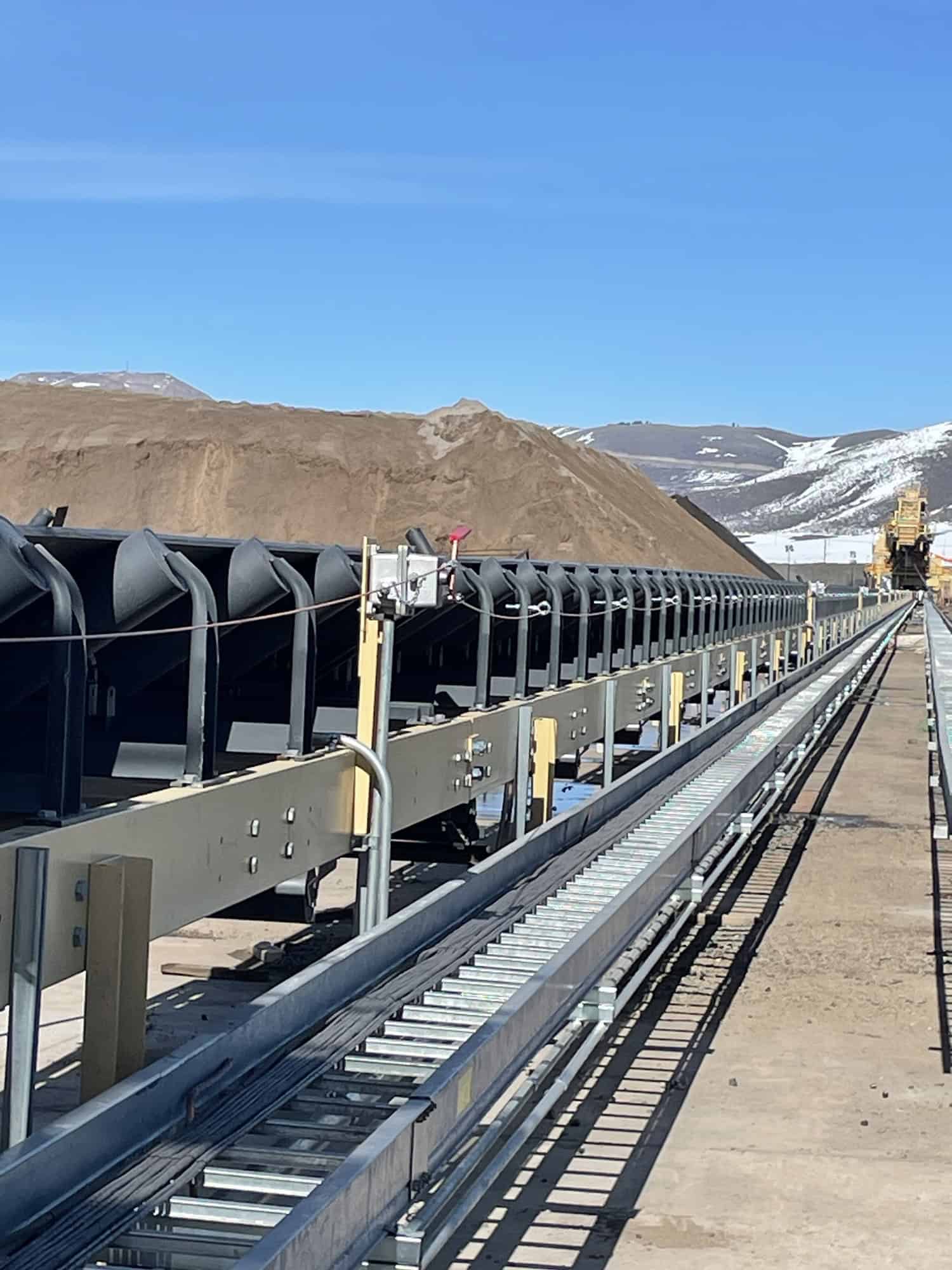

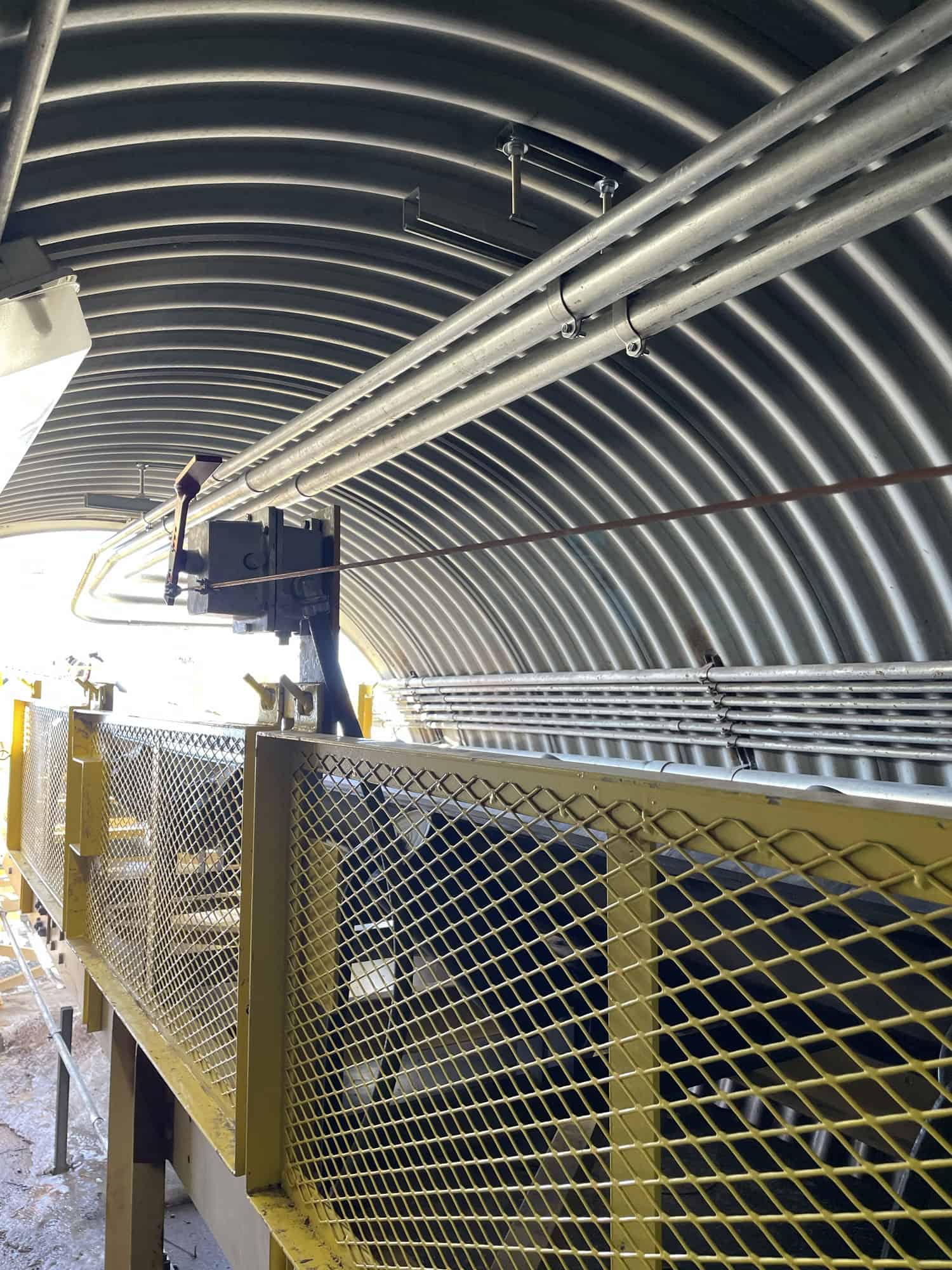

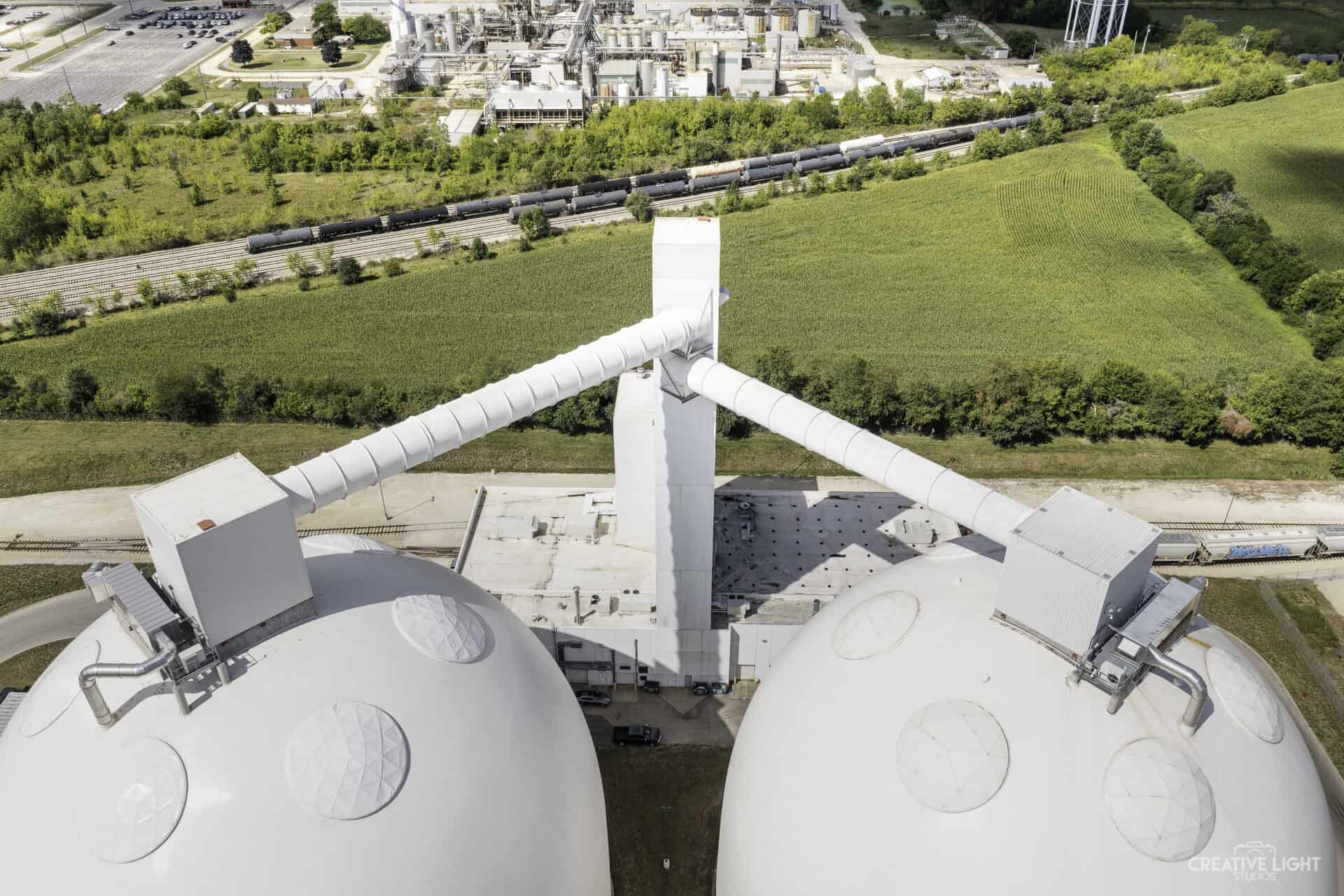

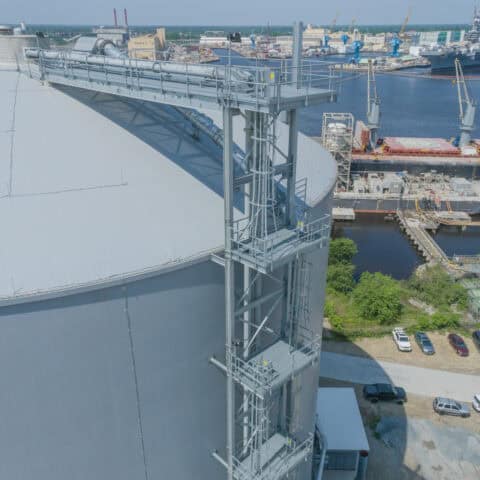

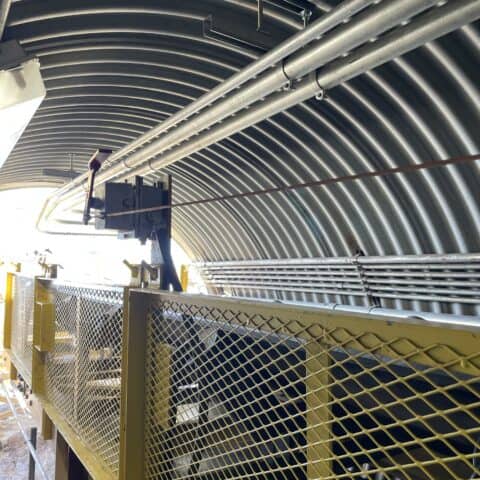

Bulk storage involves more than selecting a structure. Product flow and accessibility are key. Dome Technology provides comprehensive installation services, erecting components like stair towers and conveyor supports on-site. This integration ensures seamless interfaces and prevents issues other fabricators might miss. We also offer scoring, labeling, and hole-punching. Trust our team for all your installation needs. From mechanical to structural features, our expert team handle it all.

Overview

Our full-time, in-house engineering team is skilled at customizing systems, whether than means full design and installation or simple steel erection and hardcore concrete work. Dome Technology works with companies to install the systems they choose. Our team is eager to work with your engineers and preferred vendors. We can also take a more active role by bringing value-added design concepts to the table.
